DMA card BIOS settings: how to turn off Fast Boot

Turning Fast Boot off is the only BIOS change our DMA firmware needs. Find the BIOS key and Fast Boot menu for ASUS, MSI, Gigabyte, ASRock, Dell, HP and Lenovo.
GuideUpdated · phantom · 549 reads

The only BIOS setting you have to change for our DMA firmware is Fast Boot, which you turn off. The only other setting you may need to change is the PCIe slot speed, and only if your card doesn't show up. Every firmware works with SVM and NX on, but we suggest turning them off for stability unless you need them. Leave everything else alone. A lot of guides online tell you to turn off IOMMU or Memory Integrity too. You don't need to with ours (Do you need to turn off Secure Boot, TPM or IOMMU?).

The BIOS is the settings screen built into your motherboard that runs before Windows starts. Newer boards call it UEFI, but it's the same thing.

Save your BitLocker key first

Windows encrypts the drive on a lot of PCs. A change in the BIOS can make it ask for a 48 digit recovery key when it starts, and without the key you can't get into your drive. Main PC Setup shows how to check whether yours is encrypted and where the key is kept. If Windows is already asking for it, go to BitLocker recovery key after installing a DMA card.

You can also pause the encryption for one restart, which Microsoft suggests before firmware changes. Right-click the Start button, open Terminal (Admin) (Windows PowerShell (Admin) on Windows 10) and run Suspend-BitLocker -MountPoint "C:" -RebootCount 1. It switches itself back on after the next Windows start. If Windows says it doesn't know the command, the saved key is enough.

Getting in

Turn your PC on and keep tapping the key for your board from the moment the screen lights up until the BIOS appears. Most boards also show the key for a second on the first screen.

Board or PCBIOS keyOne-time boot menu
ASUSDelete or F2F8
MSIDeleteF11
GigabyteDeleteF12
ASRockF2 or DeleteF11
DellF2F12
HPEsc, then F10Esc, then F9
Lenovo ThinkCentreF1F12

The boot menu key lets you start from a USB stick once without changing any settings, and you only need it to reinstall Windows.

If the key never works, Windows can restart you into the BIOS. On Windows 11 go to Settings, System, Recovery, and press Restart now next to Advanced startup. On Windows 10 it's Settings, Update & Security, Recovery. Then choose Troubleshoot, Advanced options, UEFI Firmware Settings and Restart. This starts from Windows, so only use it when your card is flashed or not in your PC.

Turn off Fast Boot

Most boards open on a simple screen with only a few settings. On ASUS, press F7 for the full one, called Advanced Mode, and on other boards look for Advanced Mode at the top or bottom of the screen.

  • ASUS.
    The Boot tab, under Boot Configuration. Set Fast Boot to Disabled.
  • MSI.
    Look under Settings, though the exact menu changes between boards. Set Fast Boot to Disabled, and MSI Fast Boot too if your board has it.
  • Gigabyte.
    The Boot tab. Set Fast Boot to Disabled.
  • ASRock.
    The Boot tab. Fast Boot has three options, Disabled, Fast and Ultra Fast, so pick Disabled.
  • Dell.
    Dell calls it Fastboot, under POST Behavior. Set it to Thorough, which does the full start-up check.
  • HP, Lenovo and other brands.
    The name and place change between models, so look for Fast Boot in your PC's manual.

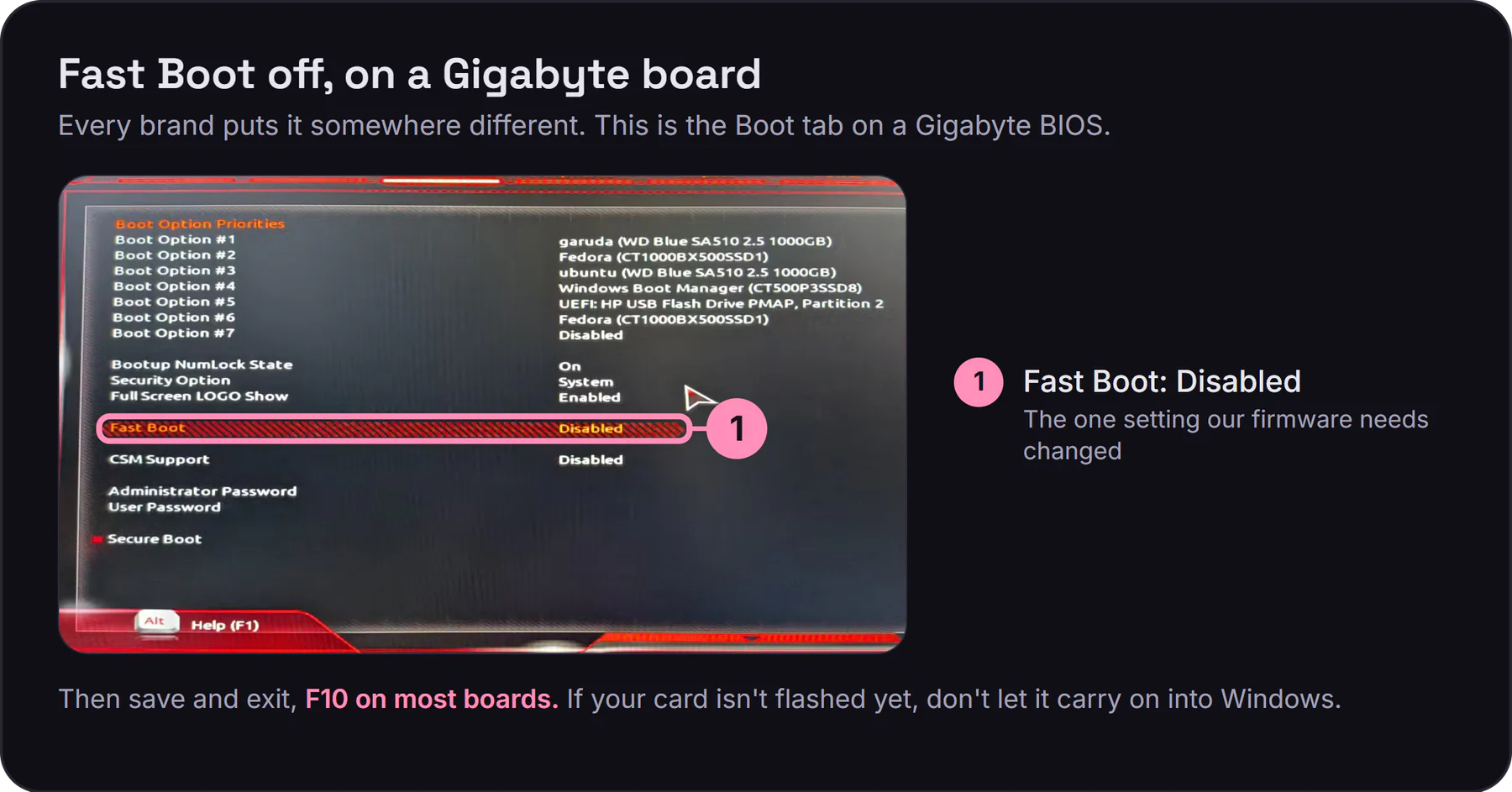

A Gigabyte BIOS on the Boot tab with Fast Boot set to Disabled. Save and exit with F10 on most boards

Windows has its own Fast startup in the power options, but the one that matters for your card is in the BIOS.

The PCIe slot speed

Each slot runs at a PCIe generation (Gen1, Gen2, Gen3 and up), and most boards leave it on Auto. Start with your slot on the fastest setting your board offers. If your card doesn't appear, step it down one generation at a time, down to Gen1, and cold boot after each change.

Slots are named on the board next to each one, like PCIEX1_1 or PCIE2, and in the manual. Where the speed setting is:

BoardWhere to look
ASUS (Intel)Advanced, System Agent (SA) Configuration, PCI Express Configuration, for the slots wired to the processor
MSISettings, Advanced, PCIe/PCI Sub-system Settings
GigabyteSettings, Miscellaneous on recent boards
ASRockAdvanced, Chipset Configuration, one line per slot, like PCIE1 Link Speed

These names change between boards and BIOS versions, so if yours is different, check the BIOS chapter of your board's manual. If your board has no speed setting for the small slots, leave it and try another slot (Which slot to pick).

Save and leave

F10 saves and exits on most boards. It asks you to confirm, then restarts. If your card isn't flashed yet, go back into the BIOS or turn your PC off instead of letting it restart into Windows. The rest of the first boot is in Main PC Setup.

After a BIOS update

A BIOS update usually puts your settings back to their defaults, so Fast Boot can come back on. Check it again after every update, and pause BitLocker before you update the same way as above.

Common questions

  • Which BIOS settings does a DMA card need?
    Fast Boot off, and virtualization off unless one of your games needs it. The PCIe slot speed only changes if your card doesn't show up.
  • What is virtualization called in the BIOS?
    SVM Mode on AMD boards, and Intel Virtualization Technology or VT-x on Intel.
  • Is Fast Boot the same as Fast startup in Windows?
    No. Fast startup is in Windows' power options, and the one your card needs off is Fast Boot in the BIOS.
  • What PCIe speed do I set for a DMA card's slot?
    Start on the fastest setting your board offers. If your card doesn't appear, step down one generation at a time and cold boot after each change.
  • Does a BIOS update change my settings?
    It usually puts them back to their defaults, so check Fast Boot and virtualization are still off.
