Main PC for DMA: requirements and which PCIe slot to use

What your main PC needs for a DMA card, which PCIe slot to use, why slots share lanes with your M.2 drives, and why we don't recommend laptops.
PostUpdated · phantom · 843 reads

Your DMA card goes in your main PC, the one you play on. It should be a desktop with a free PCIe slot of any length, on a board from 2020 or newer. The slot shouldn't share lanes with an M.2 drive you use.

What you need

  • A desktop, preferably.
    Laptops can be made to work, but we recommend a desktop for the reasons in the laptop section.
  • One free PCIe slot, with clear space above, below and beside it.
    Graphics cards are thick and usually block whatever is under them.
  • A board from 2020 or newer.
    On AMD that means B550 or newer. Older boards are hit and miss, and even B550 boards are mixed. If yours doesn't work, we fix it or replace it, and if it still doesn't work after that, we refund you. Private only runs on Intel, on a 2020 or newer board with an 11th gen processor or newer.

Finding a free slot

Take the side panel off and look at your motherboard. The PCIe slots are the connectors running left to right, around where your graphics card plugs in. They come in different lengths:

  • x1 is the short one, with one lane.
  • x4, x8 and x16 get longer and carry more lanes.

Your card only uses one lane, so the shortest slot is plenty, and it works the same in a longer slot.

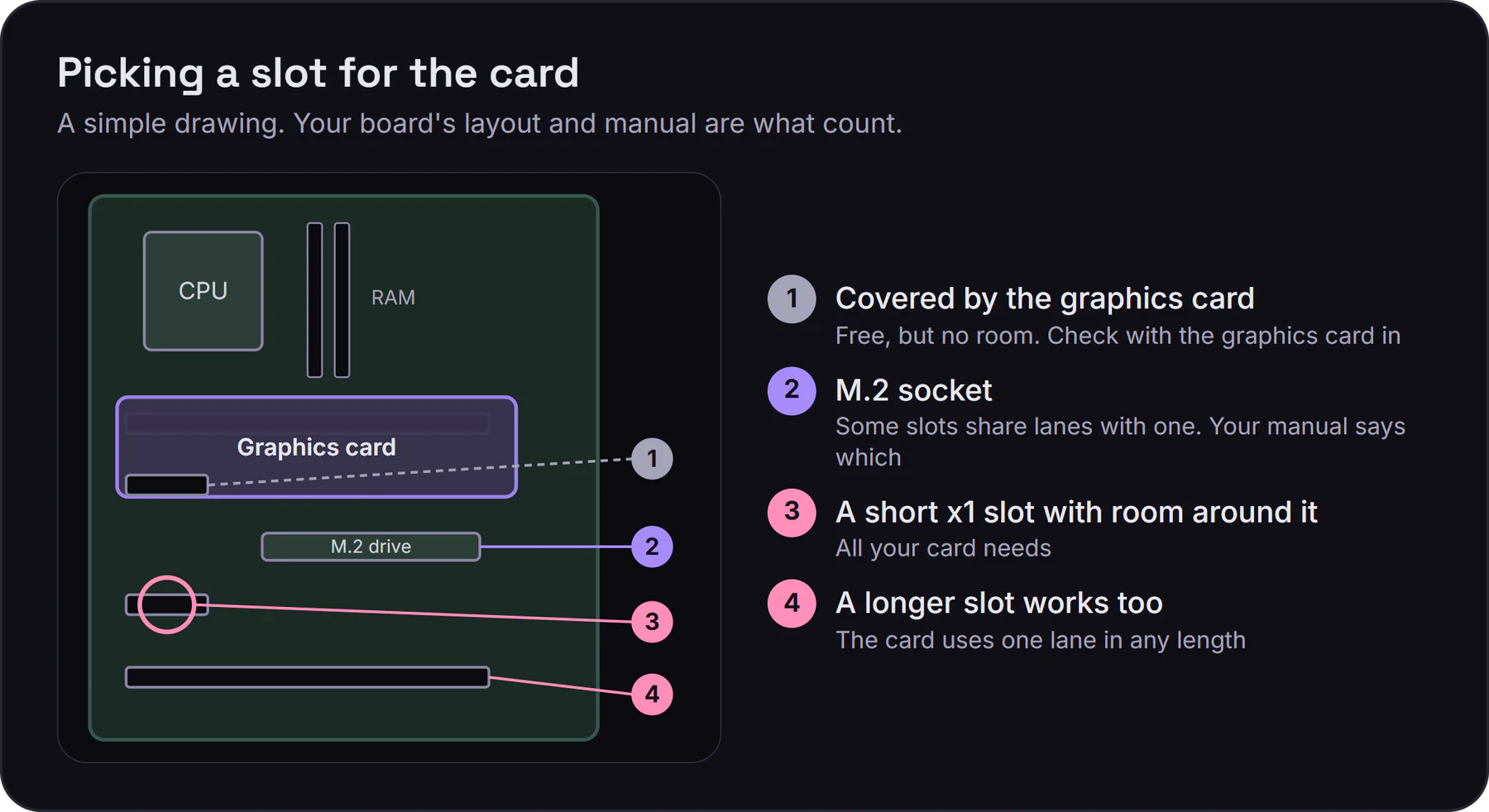

A drawing of a motherboard: a slot covered by the graphics card, an M.2 socket that can share lanes, a short x1 slot with room around it, and a longer slot that also works

When you know which slots are free and which motherboard you have, open your motherboard's manual and find its PCIe or expansion slot table. It has lines like M2_2 shares bandwidth with PCIEX4_2, and that table is the answer for your board. If the manual is hard to read you can ask an AI, but go with the manual if they disagree:

"Hey, I'm on a (your motherboard), and the (2nd, 3rd and 4th slot down) are free. Which ones do not share lanes with my M.2 or graphics card?"

If you don't know your board model, press the Windows key, type System Information and look at BaseBoard Product.

Which slot to pick

On any modern board the safe layout is your graphics card in the top full length slot, your boot drive in the main M.2 socket and everything else after that. Your card falls under everything else. Pick a spare slot that isn't tied to something you use, and avoid these two:

  • A slot that shares lanes with an M.2 drive you have filled.
    This one is common. A shared lane can switch your card off completely or drop your M.2 drive to fewer lanes. The manual's table tells you which slots share.
  • A slot that takes lanes from your graphics card.
    This only happens on boards that split the processor's sixteen lanes, and only if you fill a second full length slot. Your graphics card then runs at x8 instead of x16, which costs a few percent in most games. Your card belongs in a small chipset slot, so you'll almost never run into this. If you do, move your card to another slot.

If your card doesn't show up in a spare slot.
Try another slot, the top x16 included, before you assume your card is dead.

Why slots share lanes at all

The slots on your board aren't independent.

  • A consumer processor only has a limited number of PCIe lanes.
  • Most of them go to the graphics card, and usually four go to one M.2 socket.
  • Everything else hangs off the chipset, which reaches the processor over one shared link.
  • There are more slots and sockets than lanes to feed them, so some are wired to the same lanes and the board switches between them.

This is where manual lines like M2_2 shares bandwidth with PCIEX4_2 or when M2_2 is populated, PCIEX4_2 is disabled come from. M.2 sockets differ from each other for the same reason. Some come off the processor, some come off the chipset and some switch off SATA ports when you use them.

Sharing the chipset link is fine.
Your card uses one lane and asks for almost nothing, so it can share the chipset link with your USB ports, drives and network adapter.

Room for the card

Graphics cards are one to four slots thick, so a slot can be empty and still unusable. Check with your graphics card in place.

Your card is small.
The GODLIKE 100T is 3 × 3 × 0.5 inches.

The bracket at the back.
Every slot has a thin metal cover lined up with it on the back of the case, and that's where your card's bracket and cable go. You take the cover out before you put your card in. Most are held by one screw, but cheaper cases use covers you snap out and those don't go back in, so make sure you have the right one first.

If the only free slot is covered/blocked

A PCIe riser is an extension for your PCIe slot. It goes into your slot, and your card goes into it.

  • Keep it short.
    The longer the riser, the worse the signal.
  • Don't buy the cheapest one.
    Get a short, well shielded PCIe x1 riser, because bad risers make cards slow and unstable and sometimes stop them working at all.

About laptops

  • There's no slot, so people use an M.2 socket instead.
    Those are the small sockets inside a laptop that the SSD and Wi-Fi card plug into, and they carry PCIe lanes. DMA cards are made in M.2 shape for this, and ours is the normal slot kind.
  • So something has to come out.
    Most laptops have one M.2 socket for the SSD and a smaller one for the Wi-Fi card. Take the SSD out and you have nothing to boot from, take the Wi-Fi card out and you're on Ethernet or a USB adapter from then on. Some laptops have a spare second M.2 socket, and if yours does, use that one.
  • Or a Thunderbolt or USB4 enclosure.
    A box with a normal PCIe slot inside that plugs into your laptop with one cable, so nothing comes out of your laptop and your card stays a normal card. You need a real Thunderbolt port, or a USB4 port that supports PCIe. A port that's only USB-C shaped won't work.

We don't recommend it and we can't help you with it.
We'd rather tell you that than sell you something and leave you stuck.

Why:

  • You run with the back cover off, because the cable has to come out somewhere.
  • Cables around a laptop are fragile and get knocked.
  • Every laptop is different and we can't test yours, so when it goes wrong we have nothing useful to tell you.

If a desktop is an option at all, take it, because laptop insides are fragile and it's easy to break something important. If you want to use a laptop as your second computer, read Can I use a DMA card with a laptop?

What does not matter

  • Your processor.
    Your card doesn't care which one you have. The exception is Vanguard, which needs an Intel processor on Private and MiTM, while RDMA runs it on AMD. Each firmware is in Choosing your firmware.
  • Your graphics card.
    Only the room it takes up matters.
  • Your power supply.
    Your card takes its power from the slot, so there's no power cable to plug in.

Before you buy

When your card arrives, Main PC Setup walks you through fitting it, and after that comes your second computer.
