GODLIKE video fusers: 10th Gen HDMI, DP and 4K Pro

Compare GODLIKE 10th Gen HDMI, 10th Gen DP and 4K Pro video fusers, including inputs, outputs, supported display modes and cables.
PostUpdated · phantom · 627 reads

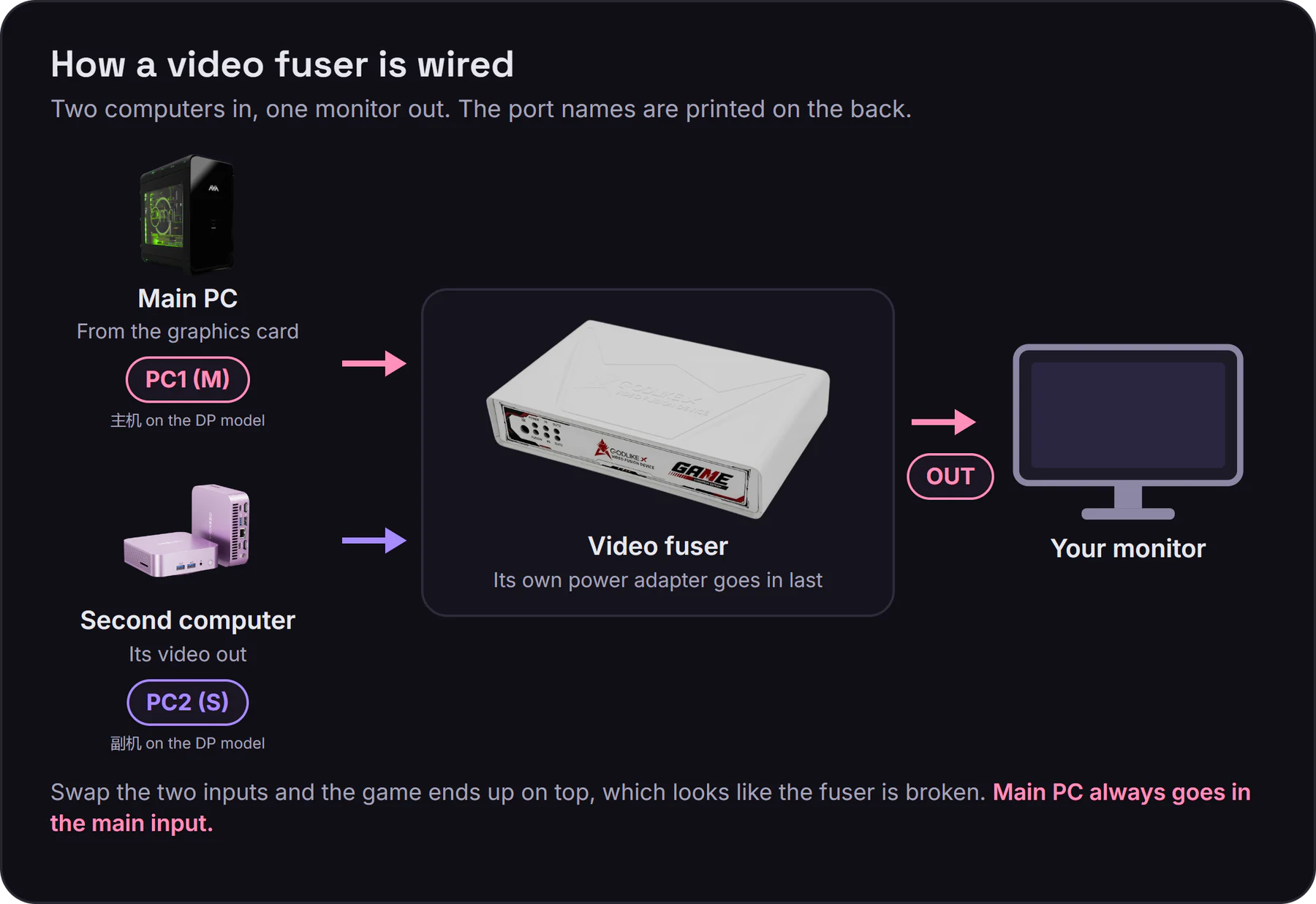

A video fuser merges the picture from both of your computers, so your software's overlay shows on top of your game on one monitor. It sits between your two computers and your monitor with nothing installed on either PC, and which one to buy comes down to your monitor's input, resolution and refresh rate.

How it works

Both computers send out a normal picture, the same way they would to a monitor. The fuser lays your second computer's picture over your main PC's and sends one merged picture to your monitor. Anything black on your second computer's picture is see-through, so set its desktop background to black. Most software draws its overlay on black, which leaves only the overlay over your game.

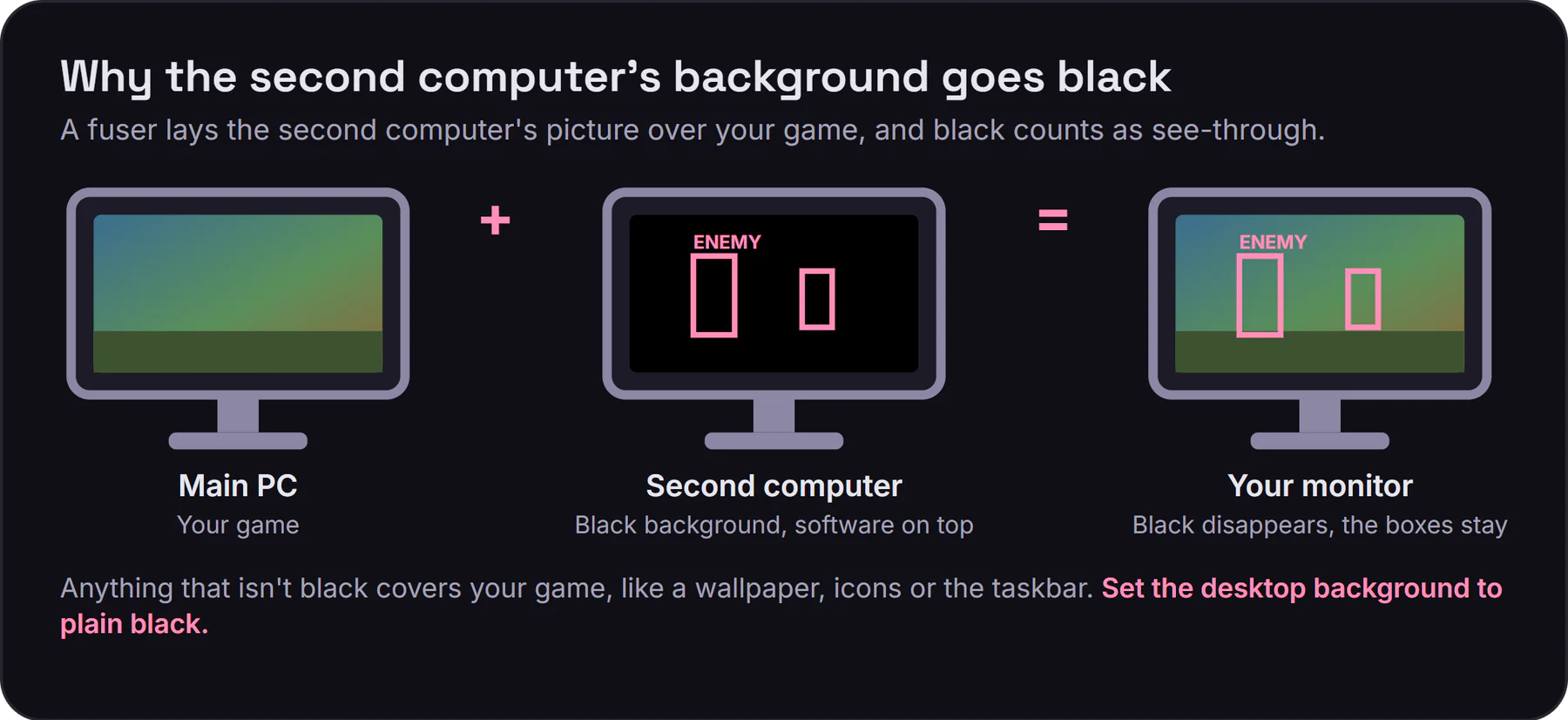

Why the second computer's background goes black: the game on the main PC, plus the second computer's black screen with the software's boxes, gives your monitor the game with only the boxes on top

On the two 10th Gen models, GODLIKE states full 4:4:4 color with no compression (the picture isn't squeezed to save bandwidth). It also states EDID pass-through (each graphics card sees your real monitor and offers its normal modes). GODLIKE also lists switching between the two computers with no black screen or stutter. The 4K Pro's listing doesn't say either way. All three have zero latency.

A fuser is optional, and a second monitor or a KVM switch works too. Do I need a video fuser? compares them.

The three we sell

10th Gen HDMI10th Gen DP4K Pro
Inputs (from your two computers)2 HDMI2 HDMI2 DisplayPort
Output (to your monitor)1 HDMIHDMI or DisplayPort, never both at once1 DisplayPort
Top modes1080p 240Hz, 1440p 144Hz, 3440 × 1440 100Hz, 4K 60Hz1080p 240Hz, 1440p 165Hz, 3K 100Hz, 4K 60Hz1080p 360Hz, 1440p 240Hz, 4K 120Hz, 3440 × 1440 60Hz
Power12V 2A adapter from its box12V adapter from its box12V 2A adapter from its box, US plug, with an EU plug adapter
Cables in the box2 HDMI2 HDMI2 DisplayPort
ControlsRemote onlyRemote and buttons on the unitRemote, front buttons and status lights
Second computer needsAn HDMI output that can send your modeAn HDMI output that can send your modeA DisplayPort output and at least an AMD RX 470, an NVIDIA RTX 2060 or Radeon 780M graphics

Only use the power adapter that came in your fuser's box.

Which one

Start with which input is free on your monitor and what resolution and refresh rate you play at. Your second computer has to send the same resolution, matching the refresh rate works best, and Which second PC works with which fuser checks its ports, adapters included.

  • HDMI monitor, 1440p at 144Hz or less.
    The HDMI model.
  • DisplayPort monitor, or 1440p at 165Hz.
    The DP model, its inputs are still HDMI.
  • 1440p at 240Hz, 4K at 120Hz, or 1080p above 240Hz.
    Only the 4K Pro does those, and your second computer needs the graphics in the table and a DisplayPort output, which rules out most office mini PCs and N100 boxes. There are no returns on hardware, so check this before you buy.
  • 3440 × 1440 ultrawide.
    The HDMI model. It does 100Hz at that size and the 4K Pro only does 60Hz, so the expensive one is worse for you.

Cables

  • Count the connections.
    Two inputs and one output is three cables. Two come in the box, so plan on at least one more of the type your monitor takes. On the DP model with a DisplayPort monitor, that's a DisplayPort cable.
  • Rate them for your mode.
    An 18 Gbps (Premium High Speed) HDMI cable covers every mode on the HDMI model. For 1440p at 165Hz on the DP model, use 48 Gbps Ultra High Speed HDMI cables on the inputs. For the 4K Pro's top modes, a VESA-certified DP8K cable is the safe choice.
  • Avoid adapters if you can.

For setup step by step, and fixes for no picture, a black screen or a wrong refresh rate, go to Video fuser setup.
